Cutting-edge 3d sensors for Inspection, Guidance and Measurement
The company’s strategy is to combine new technologies with high quality German engineering to create a range of 3D Sensors that can be fitted anywhere, are quick to set up and easy to deploy.
SmartRay Sensors combine laser triangulation with innovative image formation technology to create detailed 3D images that can be processed by any 3rd party vision software. The latest ECCO family brings a new design philosophy to the 3D Sensor market that delivers high performance, small size and lightweight construction.

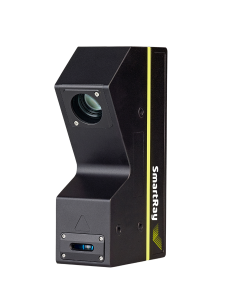

Ecco Family
SmartRay™
ECCO 95.010
Typ. field of View
11 mm
Measurement range
5 mm
Typical scan rate
Approx. from 1 kHz up to 10 kHz
Typ. vertical resolution
0.37 µm – 0.45 µm
Typ. lateral resolution
5.8 µm – 6.8 µm
SmartRay™
ECCO 95.020
Typ. field of View
25 mm
Measurement range
16 mm
Typical scan rate
Approx. from 1 kHz up to 10 kHz
Typ. vertical resolution
1.1 µm – 1.6 µm
Typ. lateral resolution
11.5 µm – 14.5 µm
SmartRay™
ECCO 95.040
Typ. field of View
36 mm
Measurement range
16 mm
Typical scan rate
Approx. from 1 kHz up to 10 kHz
Typ. vertical resolution
1.4 µm – 1.8 µm
Typ. lateral resolution
18 µm – 20 µm
SmartRay™
ECCO 95.100
Typ. field of View
98 mm
Measurement range
100 mm
Typical scan rate
Approx. from 1 kHz up to 10 kHz
Typ. vertical resolution
5 µm – 12 µm
Typ. lateral resolution
42 µm – 70 µm
SmartRay™
ECCO 95.200
Typ. field of View
190 mm
Measurement range
250 mm
Typical scan rate
Approx. from 1 kHz up to 10 kHz
Typ. vertical resolution
12 µm – 50 µm
Typ. lateral resolution
66 µm – 138 µm
SmartRay™
ECCO 95.015G
Typ. field of View
12 mm
Measurement range
5.6 mm
Typical scan rate
Approx. from 1 kHz up to 10 kHz
Typ. vertical resolution
0.42 µm – 0.54 µm
Typ. lateral resolution
6.0 µm – 6.8 µm
SmartRay™
ECCO 75.200
Typ. field of View
190 mm
Measurement range
250 mm
Typical scan rate
Approx. from 150 Hz up to 4 KHz
Typ. vertical resolution
12 – 50 µm
Typ. lateral resolution
66 – 138 µm
SmartRay™
ECCO 75.100
Typ. field of View
98 mm
Measurement range
100 mm
Typical scan rate
Approx. from 150 Hz up to 4 KHz
Typ. vertical resolution
5 µm – 12 µm
Typ. lateral resolution
42 µm – 70 µm
SmartRay™
ECCO 75.030
Typ. field of View
36 mm
Measurement range
16 mm
Typical scan rate
Approx. from 150 Hz up to 4 KHz
Typ. vertical resolution
1.4 µm – 1.8 µm
Typ. lateral resolution
18 µm – 20 µm
SmartRay™
ECCO 55.100
Typ. field of View
118 mm
Measurement range
100 mm
Typical scan rate
Approx. from 400 Hz up to 6 KHz
Typ. vertical resolution
19 µm – 53.5 µm
Typ. lateral resolution
136 µm – 228 µm
SmartRay™
ECCO 55.050
Typ. field of View
69 mm
Measurement range
60 mm
Typical scan rate
Approx. from 400 Hz up to 6 KHz
Typ. vertical resolution
13.5 µm – 27 µm
Typ. lateral resolution
85 µm – 115 µm
SmartRay™
ECCO 55.020
Typ. field of View
24 mm
Measurement range
20 mm
Typical scan rate
Approx. from 400 Hz up to 6 KHz
Typ. vertical resolution
3.25 µm – 4.75 µm
Typ. lateral resolution
35 µm – 40 µm
SmartRay™
ECCO 35.100
Typ. field of View
82 mm
Measurement range
100 mm
Typical scan rate
Approx. from 100 Hz up to 500 Hz
Typ. vertical resolution
11.5 µm – 32.5 µm
Typ. lateral resolution
82 µm – 135 µm
SmartRay™
ECCO 35.050
Typ. field of view
49 mm
Measurement range
60 mm
Typical scan rate
Approx. from 100 Hz up to 500 Hz
Typ. vertical resolution
8.5 µm – 16.5 µm
Typ. lateral resolution
57 µm – 80 µm
SR Family
SmartRay™
SR9628@500
Field of View
310 mm
Measurement range
140 mm
Typical scan rate
Approx. from 2.5 KHz up to 25 KHz
Typ. lateral resolution
225 µm – 310 µm
Typ. vertical resolution
46 µm – 56 µm
SmartRay™
SR9628@160
Field of View
130 mm
Measurement range
60 mm
Typical scan rate
Approx. from 2.5 KHz up to 25 KHz
Typ. lateral resolution
92 µm – 110 µm
Typ. vertical resolution
6.5 µm – 9 µm
SmartRay™
SR5650@85
Field of View
27 mm
Measurement range
4 mm
Typical scan rate
Approx. from 4 KHz up to 25 KHz
Typ. lateral resolution
25 µm – 26 µm
Typ. vertical resolution
2.1 µm – 2.2 µm
