ECCO X

FAST – FLEXIBLE – COMPACT

The new ECCO X model delivers exceptional speed and resolution in an extraordinary compact design. Providing 3D laser scanning for customers where previously 3D laser triangulation was not a viable solution due to speed or resolution issues. Ultra-high definition paired with high speed for best performance under challenging conditions.

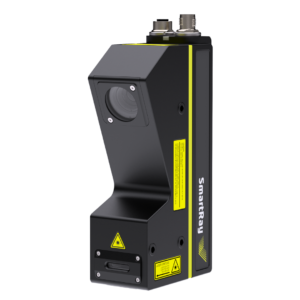

ECCO X 200

Properties & Benefits

  • EXTRAORDINARY SPEED
    up to 40 kHz scan rate

  • EXCEPTIONAL RESOLUTION
    4096 3D points

  • MAXIMUM FLEXIBILITY
    4 connector options

  • COMPACT DESIGN
    smallest in its class

SmartRay™

ECCO X 200

TO ALL SENSORS

Typical field of view (near | mid | far) 1 118 | 200 | 282 mm
Typical measurement range 1 300 mm
Stand-off distance 322 mm
Typical vertical resolution (Z) 1 6.7-37.4 μm
Typical lateral resolution (Y) 1 30-70 μm
Z-linearity 2, 5 0.0017 %
Z-repeatability 4, 5 1.1 μm
weight 793g
part number 3.002.143 | 3.004.143
Technical diagram of a 3D sensor's field of view, illustrating stand-off distance, measurement range, and focus areas across near, mid, and far fields.
Maximum points / 3D profile 4096
Typical scan rate 1 Up to 40 kHz
Typical 3D point rate 1 Up to 163 million points/sec
Interface Gigabit Ethernet ( 1 Gbit/ sec)
Inputs 2x Inputs (10 – 24 VDC)
Quadrature Encoder (AB-Channel, RS-422 standard)
Outputs 2 x Outputs, 24 VDC (max. 20 mA)
Trigger START Trigger support on Input 1
DATA Trigger support on Quadrature Encoder Input (max. 1 MHz)
or on Input 2 (max. 5 kHz)
Input voltage | Power 24 VDC, ± 15% | 10 W
Laser wavelength 660 nm
Laser class  2 | 3R
EMC test 2 EMC: EN 61000, EN IEC 61326-1, EN IEC 61326-2-2
Laser safety inputs 24 V DC +/- 15%
Electrical safety EN 61010-1
Vibration test IEC TR 60721-4-3:2003 (3M4); IEC 60068-2-6, 5-200Hz
Shock test IEC TR 60721-4-3:2003 (3M4); IEC 60068-2-27
Enclosure rating 2 IP67
Air humidity Maximum 90%, non-condensing
Temperature (operation | storage) 0 – 40° C | -20 – 70° C
Compatible accessories Power-I/O-Encoder cable: 6.320.0XX; 6.322.0XX; 6.327.0XX
Ethernet cable: 6.303.0XX; 6.308.0XX; 6.328.0XX

1 Scan rate & point rate are dependent on the configured field of view, measurement range and exposure time.  The typical scan rate can be further boosted by windowing the FOV and binning.

2 IP67 protection requires the use of original SmartRay cables and is valid only when the sensor is properly connected.

Note: Typical values may vary up to ±5% due to optical and production tolerances
